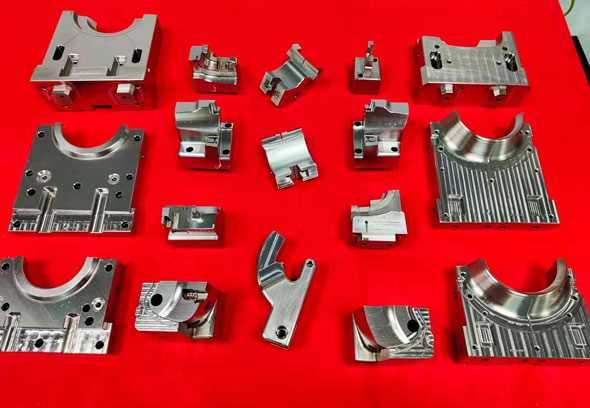

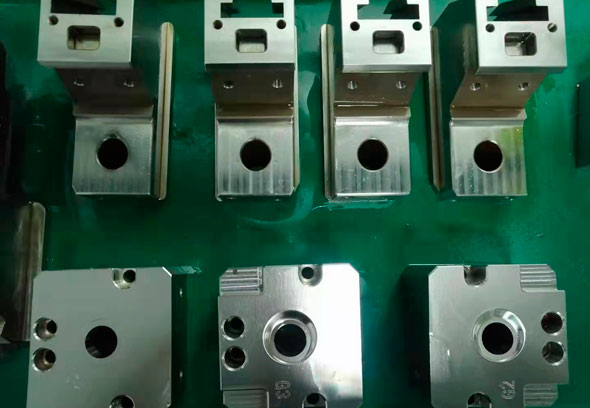

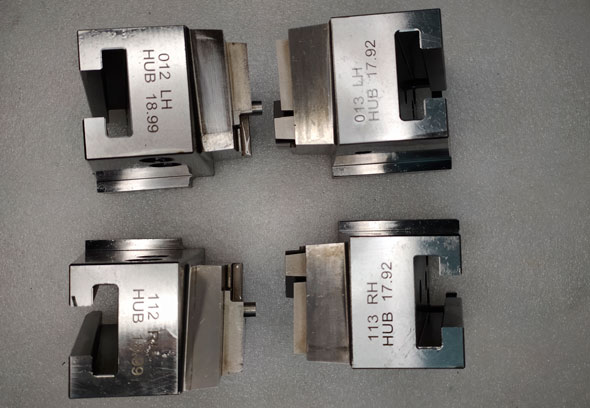

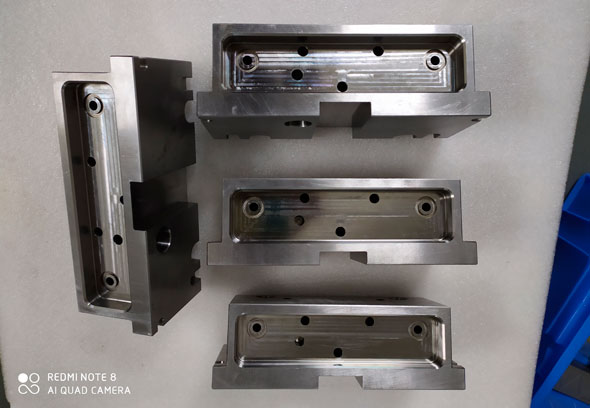

Mould Slide
/uploads/image/20201211/14/mould-slide_1607667854.jpg

Mould Slide

The slider is a mold component that can slide in a certain angle perpendicular to or with the opening and closing direction during the opening and closing action of the mold.

Global

Global Mould Slide Global


Features of Mould Slide

When the product structure makes it impossible for the mold to demould normally without the slider, the slider must be used. The material itself has appropriate hardness, wear resistance, enough to withstand the friction of the movement. The hardness of the cavity part or core part on the slider should be the same level as other parts of the cavity and core.

The Specification of Mould Slide

Part name

slider

Part material

1.2343

Mold accuracy

+ / - 0.015

Dimension detection method

CMM

Surface treatment

EDM

Exporting country

Germany

Delivery time

2 weeks

Mold quality customer satisfaction

100%

Project cooperation service customer satisfaction

100%
